INFOPRINT 4100

 Imprimante Infoprint 4100

INFOPRINT 4100 MODÈLE OBSOLETE

REMPLACE LE MODÈLE NIPSON DIGIFLEX

imprimante haute vitesse à grand volume INFOPRINT 4100 qui vous offre une fiabilité, une qualité d’impression et une impression exceptionnelles. Avec ce système d'impression, vous pouvez basculer entre une résolution de 240 à 300 points par pouce (dpi). Basé sur la fonctionnalité éprouvée IBM 3900 Advanced  Printer Technology, le système offre l’impression de tous les points adressables de deux modèles.

Premières impressions à des vitesses allant jusqu'à 354 impressions par minute (ipm) pour une impression deux poses sur du papier de 8,5 x 11 pouces ou jusqu'à 333 ipm pour une impression de deux pages sur du papier A4 (8,33 x 11,67 pouces) . Le second modèle imprime à une vitesse pouvant atteindre 501 impressions par minute (ipm) pour l'impression 2 en format 8,5 x 11 pouces ou jusqu'à 472 ipm pour une impression double sur du papier A4 (8,33 x 11,67 pouces). ).

Impression en continu de formats économiques rentable de l'INFOPRINT 4100 avec une ligne d'impression de 17 pouces de large • Sabre de résolution de 240/300 dpi • Vitesse allant jusqu'à 501 deux unités de 8,5 x 11 pouces ou 472 impressions A4 recto verso par minute, selon le modèle • Unité de contrôle puissante avec interface opérateur avancée et possibilités d'accessoires flexibles

De plus, en combinant les systèmes d’impression INFORPINT 4100 de la société. Grâce au positionnement unique de la page avec l’unité de contrôle, vous pouvez imprimer jusqu’à quatre pages logiques sur une feuille. Chaque page peut avoir une taille différente et être séquencée, tournée et positionnée comme souhaité. Cela peut facilement être fait en dehors de vos programmes d'application.

Modèles: infoprint 3000 Infoprint 4000

Vitesse d'impression - Noir et blanc TS1 Simplex: jusqu'à 381 ipm, 2 jusqu'à 8,5 × 11 portrait  TS2 Simplex: jusqu'à 610 ipm, 2 jusqu'à 8,5 × 11 portrait  TS3 Simplex: jusqu'à 720 ipm, 2 jusqu'à 8,5 × 11 portrait  TD1 / TD2 Duplex: jusqu'à 762 ipm, 2 jusqu'à 8,5 × 11 portrait  TD3 / TD4 Duplex: jusqu'à 1220 ipm, 2 jusqu'à  8,5 × 11 portrait TD5 / TD6 Duplex: jusqu'à 1440 ipm, 2 jusqu'à 8,5 × 11 portrait


 IBM-INFOPRINT-4000-SPECS-EN

 IBM-INFOPRINT-4100-SPECS-EN



The IBM InfoPrint 4000 IR3/IR4 is an all-points-addressable (APA) continuous forms duplex and simplex printing system with the capability of printing at 480, 600 or 480/600 switchable resolution. In addition it offers: Imfoprint 3000 infoprint 4000

  • 354 IPM*/Print Engine simplex and dual simplex throughput speeds
  • 708 IPM* duplex throughput speeds
  • High-quality production printing
  • High-speed Print on Demand printing
  • Advanced Function Common Control Unit (AFCCU)
    • 1024 MB standard memory
    • Host-managed paper-jam recovery through post-processing equipment
    • Enhanced verification for duplex applications that improves page integrity
*     2-up, side-by-side 8.5 x 11-inch Portrait (A4, 333 IPM simplex
      and 666 IPM duplex)

Key Prerequisites

The IBM InfoPrint 4000 IR3/IR4 is supported on the following operating environments:

  • Traditional Production Printing
    • S/370 (TM) Parallel Channel
    • S/390 (R) Serial Channel (ESCON (R))
    • Token Ring (TCP/IP)
    • Ethernet 10/100 BaseT (TCP/IP)
    • FDDI (TCP/IP)
  • Print On Demand (POD) Printing
    • InfoPrint Manager for AIX (R)
    • FDDI (TCP/IP)

The extent of support for a given operating system should be discussed in detail with an IBM representative.

TECHNICAL INFORMATION

Specified Operating Environment



Physical Specifications

InfoPrint 4000-IR3**

Depth:           955 mm               955 mm          955 mm
                 (38 in)              (38 in)         (38 in)
Height:          1500 mm              1500 mm         1500 mm
                 (59 in)              (59 in)         (59 in)
Length:          1829-1892* mm        510 mm          2339-2402*
                 (72-74*in)           (20 in)         (92-94*in)
Weight*:         989 kg               112 kg          1101 kg
                 (2175 lb)            (246 lb)        (2421 lb)


InfoPrint 4000-IR4**

Depth:           955 mm               955 mm          955 mm
                 (38 in)              (38 in)         (38 in)
Height:          1500 mm              1500 mm         1500 mm
                 (59 in)              (59 in)         (59 in)
Length:          1829-1892* mm        510 mm          2339-2402*
                 (72-74*in)           (20 in)         (92-94*in)
Weight*:         989 kg               112 kg          1101 kg
                 (2175 lb)            (246 lb)        (2421 lb)

* Longer dimension is with the stacker extended. ** Approximate weights are supplied for customer planning use. Actual weights may vary slightly with machine configuration.

Operating Environment

Print contrast control allows the operator to adjust print darkness.
Achieving optimum print quality is dependent upon paper quality.

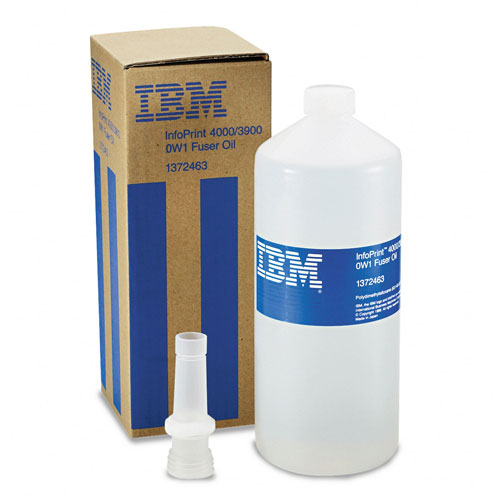

Supplies: The IBM InfoPrint 4000 IR3/IR4 utilize InfoPrint 4000/3900 toner and developer mix. The remaining supplies are also the same as the InfoPrint 4000 IR1/IR2 Printing System.
Duty Cycle: The IBM InfoPrint 4000 IR3/IR4 has the following monthly printing capacities.

Paper Handling

Input Continuous Forms: The InfoPrint 4000-IR3/IR4 Printers have a paper supply capacity of 16 inches (406 mm) of fanfold paper.

Installing special feature number 4710 (one comes standard on each engine) provides the attachment for high-capacity, roll-feed devices that will enable the customer to fully utilize the high-productivity capabilities of the IBM InfoPrint 4000 family. Such roll-feed input devices enable continuous printing of several hours between paper loading.

There is a standard splicing station to minimize waste and increase operator efficiency.

Output Continuous Forms: The IBM InfoPrint 4000-IR3/IR4 Printers are provided with a stacker on each engine with a maximum paper capacity of up to 14 inches (356 mm) in height. The actual height may be operator adjusted to limit the weight of the output stack of paper. The stacker can stack paper with lengths between 7 and 14 inches (178 to 356 mm).

The ability to attach post-processing equipment (feature numbers 4710 and 4720) allows additional input and output capabilities.

Paper Sizes: The InfoPrint 4000-IR3/IR4 paper sizes are:

  • Width:
    • 9 to 18 inches (229 to 457 mm; continuously variable) in duplex
      9 to 18 inches (229 to 457 mm; continuously variable) in simplex
      The maximum print width is 17 inches (432 mm).
  • Length:
    • 3* to 25 inches (75 to 625 mm) lengths (in 1/3 and 1/2 inch increments)
      7* to 14 inches (178 to 350 mm) are supported by the standard stacker
      3* to 25** inches (75 to 625 mm) with post-processing
      14 to 25** inches (350 to 625 mm) lengths may be printed but cannot be stacked with the standard stacker.
      When printing 14 to 25 inch form length, suitable post-processing equipment is recommended.

* Lengths less than 7 inches (178 mm) are folded in multiples by the forms supplier and the stacker. (For example, forms 3.5 inches in length may be folded every 7 inches.) ** There are limitations on the maximum page size that can be addressed by an application program. If you have a requirement for a page larger than 22.7 inches, it is recommended you contact your IBM representative or call Techline at 888-426-5525 for a review of the application.

Paper Weights: The InfoPrint 4000-IR3/IR4 printers support the following paper weights:

  • 16 to 28 pound (60 to 105 g/m2) bond in duplex mode
  • 16 to 28 pound (60 to 105 g/m2) bond in simplex and dual simplex mode
