Vipcolor VP600

cl4nx sato vp600

The NEW VIPCOLOR VP600 is the best option





For start-up companies, small or medium-sized companies that are considering entering the printing of color labels in their own establishment. The printing of labels "on-demand" with the VP600 offers important advantages,

1. High quality color labels
2. No minimum quantities
3. Fast market launch
4. Save thanks to the "just-in-time" production, without preparation costs, rapid design changes, and avoiding the obsolescence of labels

HIGH PERFORMANCE

Designed for high performance but with a price within reach of all small and medium enterprises. Companies are in a hurry because of the high prices and expenses involved in pre-printed labels in traditional printers, along with the wide variety of products they offer, they will see it essential to have a VP600.

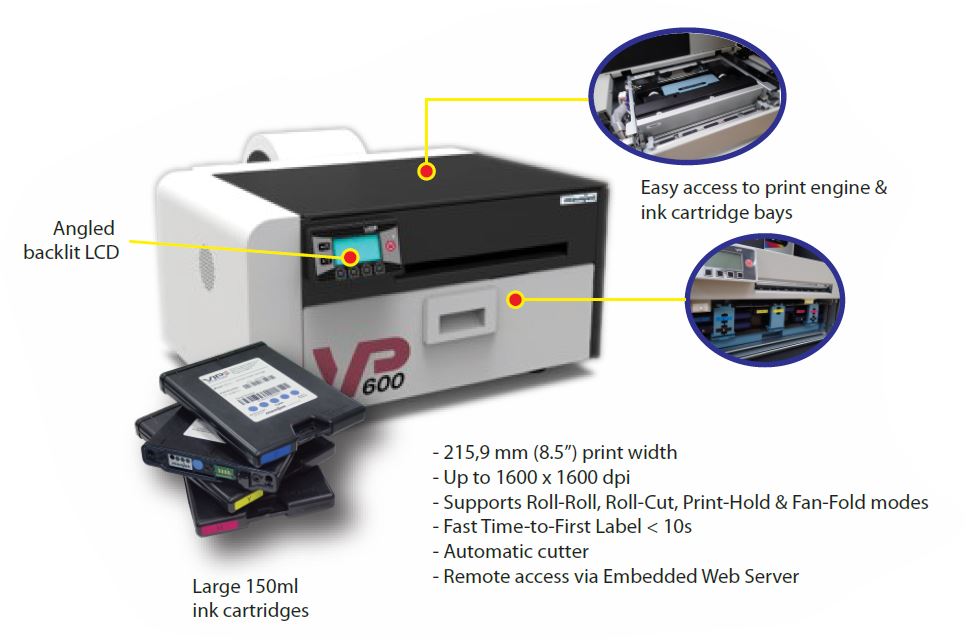

With a robust yet intuitive design for in-house label production, the VP600 offers fast color printing at an affordable price. Its compact design is perfect for small sites or small spaces.

By using Memjet Inkjet technology, the VP600 offers high print speed (12m / min), up to a maximum of 215mm label width and individual CMYKK cartridges, the largest in its category.



Key Benefits

Digital color label printer
Up to a print speed of 12m / min
With a resolution of up to 1600 × 1600 dpi
Robust design for industrial use
Efficient and Affordable
Compact design

LINK VIPCOLOR VP600



PERFORMANCE

Speed: Up to 12 m / min (203mm per second – 8 IPS)
Resolution: Up to 1600 x 1600 dpi
Connections: USB 2.0; Ethernet 10 / 100Base-T; GPIO
Ink: Individual dye inks of 150 ml, cartridges CYMKK
Electrical connection: Universal internal power supply
Quality barcodes: 1D barcode at least Grade B (Code 39) with 10mils bar width
2D barcode at least Grade B (PDF417) with 10mils cell size

MATERIALS

Printing modes: Roll to Roll, Roll to Cut, Print and Hold (non-peel)
Label width: 50.8 – 215.9 mm (2 “- 8.5”)
Max. label length: Up to 1,016 m (40 “)
Thickness: 0,1 – 0,3 mm
Type of finish: Glossy, Semi-gloss and matt inkjet coated media
Qualified materials: Consult the list of compatible materials for printers VIPColor
Sensor: Separation, black mark, continuous.

OPERATIONAL RANGE
Working range: 15 to 35 Cº; RH 20-80%
Storage: -5 to 50

REGULATIONS AND SECURITY

EMC / CE Security (Europe), FCC Part 15, Subpart B, Class A (US) EC 60950-1 Compliance (International), cULus (US / Canada)

USABILITY AND USER INTERFACE

User interface
Internal web server
LCD control panel in 9 languages
LEDs for warnings and indications
Easy access doors to the head and ink cartridges

Exterior appearance
Designed for easy configuration, use and maintenance
Metal outer housing

Driver: Microsoft® Windows 7 / Windows10 (32/64 bits); Windows Server 2003/2008 R2 / 2012 (32/64 bits)

Network: TCP / IP (Static IP or DHCP Auto)

Acoustic level: Less than 60dBA

ACCESSORIES AND DIMENSIONS

Accessories included
External unwinder up to 150mm (6 “) in diameter, 76mm (3”) mandrel. Integrated automatic cutter
Options: Improved unwinder up to 250mm OD (8 “), with switch for turning direction change, and speed adjustment
Dimensions: 510 x 285 x 385 mm (20.1″ x 11.2 “x 15.2”)
Weight (printer only ): 30 kg (66 lbs)
Warranty: 1 year factory limited warranty or 5M inches), the first to expire.

SUPPLIED MATERIAL

Complete printer (with external unwinder included, head and ink cartridges)

REF                     DESCRIPTIONvipcolor VP600

VP-600-AS02A – Ink Cartridge CYAN
VP-600-AS05A – Ink Cartridge BLACK
VP-600-AS08A – Ink Cartridge MAGENTA
VP-600-AS11A – Ink Cartridge YELLOW

VP600-AS14A – COMBO INK VIPCOLOR VP600 (2K, 1C, 1M, 1Y)

Combo package of 5 ink cartridges for Vipcolor VP600 color label printer. The box contains 2 black cartridges, 1 magenta cartridge, 1 yellow cartridge and 1 magenta cartridge.

Capacity 150ml

VP600 industrial color label printers use Memjet inkjet technology.
