Logijet TC8

Thermal Printer Microplex Logijet TC8

Printing of large size GHS labels for:

Chemical containers, barrels, drums.



Labeling of products according to the CLP GHS and SGA regulation



The Microplex Logijet TC8 is a thermal transfer printer perfectly suited for industrial applications, its two printing modules allow two tapes of different colors to be loaded, therefore the Logijet TC8 is a printer that complies with the new REACH CLP regulation  or product labeling according to the SGA regulation and labels for chemical products CLP / GHS of the chemical industry besides its printing width of 219 mm / A4, ideal for labeling large format drums.

The Microplex Logijet TC8 model is the perfect solution for printing large labels A4 on both paper and polypropylene media for industrial environments.

Equipped with two printing modules that can be loaded with any color. The logiJET TC8 can be equipped with an unwinder that allows the use of rolls of labels. An optional rewinder can re-roll the printed labels. The logiJET TC8 has a robust metal housing. The easy handling of the consumables and their simple way of operating are oriented to the demanding needs of the industry. Thanks to the PCL5 integrated printing language, the LogiJET TC8 can directly replace a standard laser printer, CAB emulation now also available .
The connection to SAP is simple, fast and economical.

Perfect for:

  • Large format labels for dangerous goodsmicroplex tc8 label large chemical format ghs clp
  • Price printing
  • Logistics
  • Pharmacy
Highlights / Features / Special Attributes
  • Labels for dangerous goods according to GHS
  • Two-color printing to raise attention
  • Absolutely easy paper handling
  • Up to 150 mm / second
  • Compatible with SAP ®  - AS / 400 thanks to PCL5 + jetCAPS as well as LAN-IPDSlogijet-tc8-Labeling-barrels-system-globally-harmonized_ microplex tc8 label large chemical format ghs clp
  • Compatible with standard laser printers



Manufacturer's link:  MICROPLEX-LOGIJET-TC8

Printing technology

Thermotransfer
Flat-Head print head with permanent temperature control for high printing speed and long durability.

Controller

MPC 5.4 with INTEL XScale PXA255 CPU
(400-MHz-RISC-Processor)

Print speed

Up to 150 mm / s
Up to 6 inches / s

Resolution

300 dpi x 300 dpi

Lifetime Print Head

Transfer: up to 50,000 m

Power Supply

100 - 240 VAC, 50/60 Hz

Consumption

6.0A

Dimensions (width x depth x height in mm)

389 x 420 x 293

Weight

21kg (without optional)

Operating temperature

5 - 35 ° C

Operating humidity

45 - 75% (rel., Non-condensing)

Interfaces

USB
Parallel: IEEE 1284 (Centronics)
LAN: Ethernet-Interface
10/100 MBit, bi-directional (TCP / IP)

Optional

RS232, RS422

Memory

RAM: 64MB
Flash: 16MB

Screen

Color-Touch-Panel 3.7 inch (480 x 242 pixel)

Emulations

IDOL MICROPLEX, HP-PCL5 / HPGL, AGFA Reno, LN03 +, BULL-MP6090, Datamax (FGL), Etimark MP-1220, TEC Bx72, TEC B6xx, LDC, ZPL II, EPL2, UBI Fingerprint, IER Command, Godex EZPL, Diablo 630, IBM Proprinter, Epson FX-80, MT-600 / MT40, IDS, ANSI Genicom, TIFF, HP Designjet, XML (SAP ® ), Raster CUPS.


Optional emulations

CAB, μ-Postscript, CODE-V (Magnum), XEROX XES, KODESCRIPT +, Prescribe / PSB 2, IGP-10, Datamax Labelpoint, IPDS, AEA, AFP, RFM
(more emulations on request)


Bar codes (standard)

Codebar, Code39, MSI, PDF 417, Datamatrix, Maxi-Code, QR Code, Aztec-Code, USD-5, Interleaved 2/5, Interleaved 2/5 (3-Strich Datalogic), Interleaved2 / 5 (3-Strich Matrix ), EAN-8, 13, 128, Add-On-Codes, Code11, Code93, Code 128, UPC-A, UPC-E
(more barcodes on request)

Additional functions

Intelligent generation of bar codes
The code is generated "on the fly" by the controller

Format splitting
The printer divides a page into sub-formats.

Optional additional functions

Integrated forms management
In the printer you can store forms and fonts in a 12MB flash memory, which can be used at any time.

Status-Out
After the correct printing of a page, the printer issues a receipt.

Programmable GPIO interface (SPS-Control)
INTEGRATED INTELLIGENCE - Allows bidirectional communication between the printer and a PLC. Integration in production lines and control of the printer through the GPIO interface. A specific adaptation is possible for each client / application.

Media  Features
Size

100 - 222 mm width
Max printable. 219 mm wide

Paper thickness:
 0.14 mm - 0.25 mm

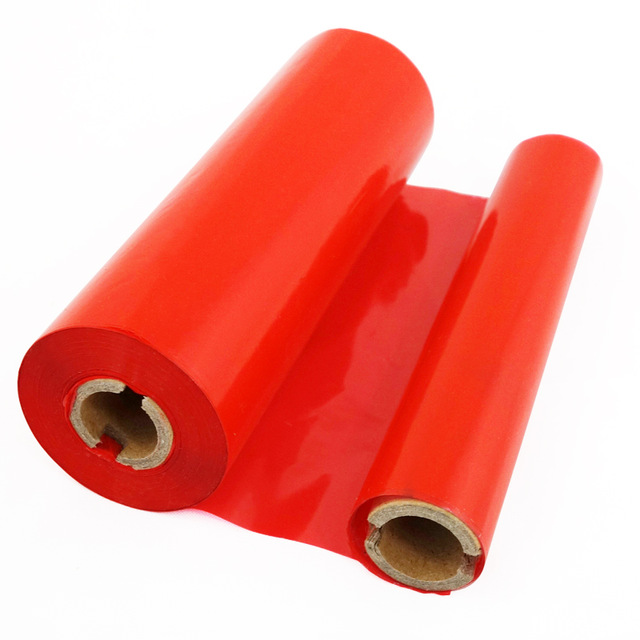

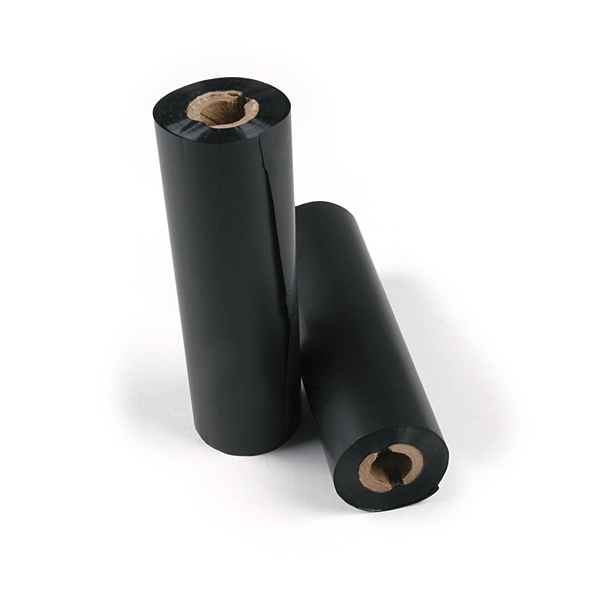

Ribbon

Diameter of the roll max. 78 mm

Internal core diameter

1 inch / 25.4 mm

Max length of Ribon

max. 450 m

Impregnated side

outside "out"

Ribbon width

max. 220 mm

Feed / paper output
external from the roll or External in Zig Zag

Sensor for black marks and die-cut
(reflection and transmission)

Optional

Unwinder / Rewinder
Size: 100 - 220 mm width
Diameter of label roll, max. 203 mm
Internal diameter of the tube 3 inches / 76.2 mm

Exit
Batch

Tear-off

All product names given by version are trademarks and / or registered trademarks of the respective companies. The technical specifications may change at any time without prior notice. All statements made, prices and specifications are only for the description of the product and are made without warranty. It is the responsibility of the buyer to ensure that the characteristics of the product with respect to the installation and commissioning correspond to its requirements.

UNPACKING

https://youtu.be/PYQCKcVriRI

REPACKING

https://youtu.be/AXff6eH4xrk

REPLACE PLATEN ROLLER

https://youtu.be/GkUn-85hOJM

REPLACE PRINT HEAD

https://youtu.be/rXDFpY0qR6M

ADJUSTMENT COLOR REGISTRATION FW5_2_55

https://youtu.be/NancjFuAdeU

ADJUSTMENT COLOR REGISTRATION

https://youtu.be/kePTV6dM6Yk

SENSOR ADJUSTMENT

https://youtu.be/jTC-T93B4mw

LOADIND & ADJUST MEDIA

PRESENTATION

https://youtu.be/Z-K2A6bzVGw
